Environment for creative processing of text and numerical data

SURVO MM

Time series and missing values

S.Mustonen, Survo Users' Guide (1992), p. 322
Time series and missing values

Edit field:

   1 *

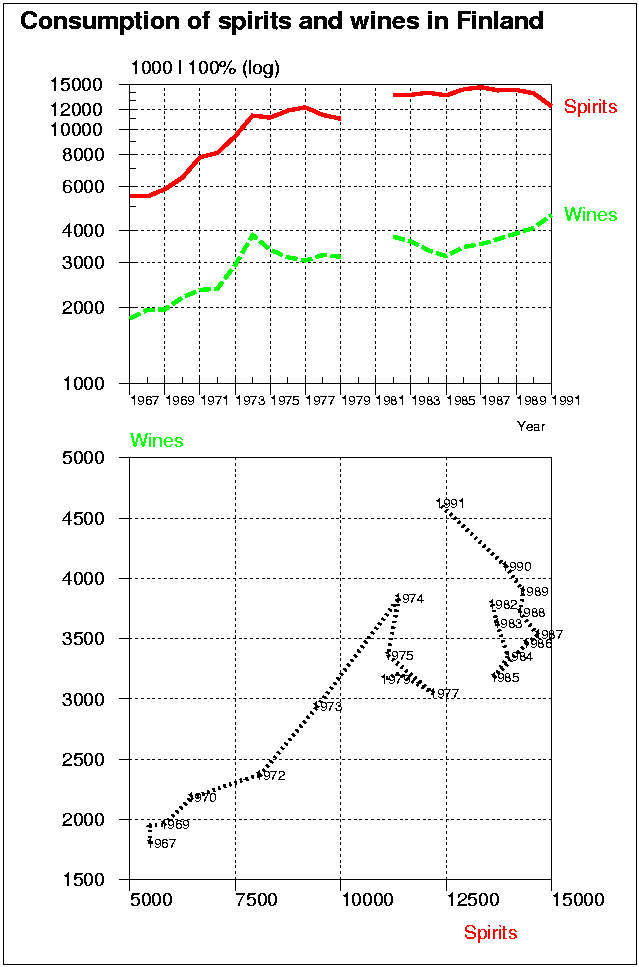

   2 *Years 1980 and 1981 are left out in order to show the default behaviour
   3 *of PLOT when missing values are encountered.
   4 *DATA ALCO
   5 * Year   Spirits   Wines   Label
   6 * 1967    5492     1801    1967
   7 * 1968    5464     1950       -
   8 * 1969    5823     1956    1969
   9 * 1970    6464     2179    1970
  10 * 1971    7764     2337       -
  11 * 1972    8084     2363    1972
  12 * 1973    9433     2930    1973
  13 * 1974   11384     3836    1974
  14 * 1975   11131     3361    1975
  15 * 1976   11880     3146       -
  16 * 1977   12210     3044    1977
  17 * 1978   11390     3210       -
  18 * 1979   11051     3164    1979
  19 * 1980       -        -       -
  20 * 1981       -        -       -
  21 * 1982   13599     3783    1982
  22 * 1983   13713     3624    1983
  23 * 1984   13977     3350    1984
  24 * 1985   13635     3177    1985
  25 * 1986   14414     3458    1986
  26 * 1987   14689     3532    1987
  27 * 1988   14259     3717    1988
  28 * 1989   14342     3893    1989
  29 * 1990   13925     4100    1990
  30 * 1991   12355     4620    1991
  31 *
  32 *HEADER=[SwissB(13)],Consumption_of_spirits_and_wines_in_Finland
  33 *XSCALE=[Swiss(7)],1(2)25  YLABEL=1000_l_100%_(log)
  34 *YSCALE=*log(y),1000(1000)4000,6000(2000)10000,12000,15000
  35 *PLOT ALCO,TIME(Year),Spirits,Wines
  36 *   SpiritsLINE=[RED][line_width(2)][line_type(0)],1,1,Spirits
  37 *   WinesLINE=[GREEN][line_width(2)][line_type(1)],1,1,Wines
  38 *SIZE=1164,800 DEVICE=PS,ALCO1.PS
  39 *GRID=[line_type(2)][line_width(0.24)],XY  TICK=1,1000
  40 *PEN=[Swiss(10)] FRAME=1 YDIV=100,550,150
  41 *.......................
  42 *PLOT ALCO,Spirits,Wines / HEADER=
  43 *LINE=[line_width(2)][line_type(2)],1 POINT=[Swiss(7)],Label
  44 *GRID=[line_width(0.24)][line_type(2)],XY
  45 *SIZE=1164,1164 LINETYPE=[line_width(0)] DEVICE=PS,ALCO2.PS
  46 *XSCALE=5000(2500)15000 YSCALE=1500(500)5000
  47 *XLABEL=[RED],Spirits YLABEL=[GREEN],Wines
  48 *PEN=[BLACK][Swiss(10)] FRAME=1
  49 *.......................
  50 *PLOT /FRAME / DEVICE=PS,F.PS FRAME=0
  51 *FRAMES=F F=0,0,1164,1770,0
  52 *.......................
  53 *EPS JOIN ALCO.PS,F,A1,A2 / A1=ALCO1.PS,0,970 A2=ALCO2.PS,0,-75
  54 *
