Environment for creative processing of text and numerical data

Dissonance function

S.Mustonen, Survo Users' Guide (1992), p. 330

Edit field:

   1 *
   2 *FILE CREATE DISS,20,5,64,8,501
   3 *FIELDS:
   4 *1 N 4 X
   5 *2 N 4 DISS2
   6 *3 N 4 DISS3
   7 *4 N 4 DISS4
   8 *5 N 4 DISS5
   9 *END
  10 *
  11 *VAR X,DISS2,DISS3,DISS4,DISS5 TO DISS
  12 *X=1+(ORDER-1)/500
  13 *DISS2=Diss(2,X) DISS3=Diss(3,X) DISS4=Diss(4,X) DISS5=Diss(5,X)
  14 *.......................................................................

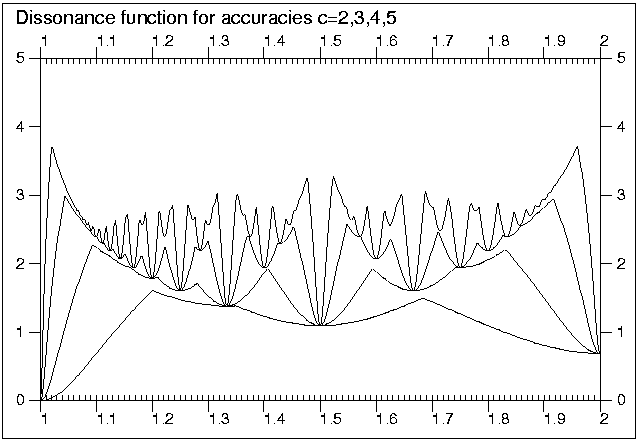

  15 *HEADER=[Swiss(10)],Dissonance_function_for_accuracies_c=2,3,4,5
  16 *SIZE=1164,800 XDIV=70,1030,64 YDIV=70,630,100
  17 *              XSCALE=1(0.1)2 YSCALE=0(1)5 TICK=0.01,0 TICK2=TICK
  18 *              XSCALE2=XSCALE YSCALE2=YSCALE XLABEL=  YLABEL=
  19 *LINE=1
  20 *PLOT DISS,X,DISS2,DISS3,DISS4,DISS5
  21 *DEVICE=PS,DISS.PS PEN=[Swiss(8)]
  22 *
  23 *
  24 *  More information on the subject from the Survo User Guide, p. 330.
  25 *  The classical treatise is
  26 *      Helmholz, H. (1877). On the Sensations of Tone, (English
  27 *      edition by A.J.Ellis 1885), Reprinted by Dover 1954.
  28 *
