Inclined projection motion (flight trajectory)

Beginning status (before activation):

   1 *
   2 *Inclined projection motion (flight trajectory)
   3 *Initial velocity v0=14 m/s  Acceleration due to gravity g=9.81 m/s^2
   4 *Initial angle A=40(5)50 degrees  (i.e. 40, 45, and 50 degrees)
   5 *
   6 *Initial angle in radians a=A/360*2*PI  PI=3.141592653589793
   7 *
   8 *GPLOT x(t)=v0*cos(a)*t,
   9 *      y(t)=v0*sin(a)*t-g*t^2/2
  10 *
  11 *HEADER=[Swiss(50)],Inclined_projection_motion_(flight_trajectory)
  12 *t=[line_width(2)],0,20,0.1
  13 *MODE=1000,600 XDIV=100,800,100 YDIV=100,400,100 PEN=[Swiss(15)]
  14 *WSIZE=WY,0.6*WY WHOME=WX-WY,0
  15 *XSCALE=0(1)20 YSCALE=0(1)10 GRID=1,1            OUTFILE=TRAJECTORY
  16 *

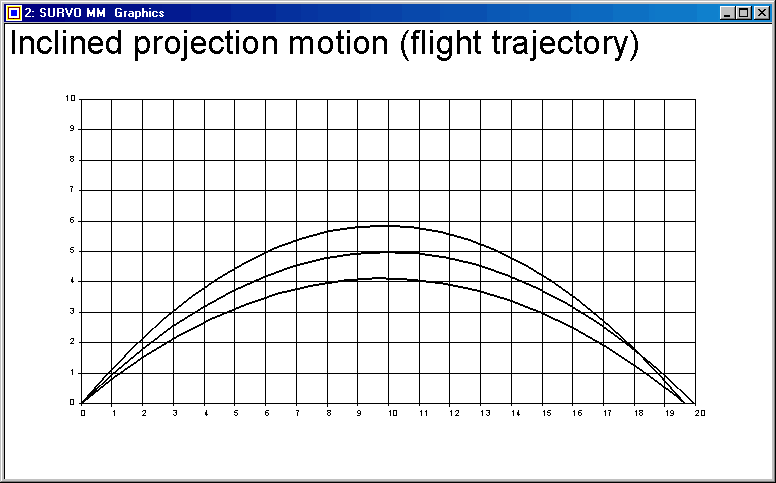

Activation creates a graph:
