Käsittelyn kohteena on Helsingin (Kaisaniemi) kuukausittaiset keskilämpötilat ja sademäärät vuosina 1829-2003, jotka löytyvät Survon mukana tulevasta datatiedostosta HEL_TERA.SVO.
Tämä nykyisin 2098 havainnon aineisto näyttää loppuosaltaan seuraavalta:
*IND=ORDER,2077,2098 VARS=Year,Month,Temp,Rain
*FILE LOAD HEL_TERA
*DATA HEL_TERA*,A,B,C
C Year Month Temp Rain
A 2002 1 -2.7 64
* 2002 2 -0.4 49
* 2002 3 0.8 37
* 2002 4 5.3 7
* 2002 5 11.4 18
* 2002 6 16.0 68
* 2002 7 19.1 39
* 2002 8 19.4 6
* 2002 9 11.6 5
* 2002 10 1.5 33
* 2002 11 -1.9 63
* 2002 12 -7.1 11
* 2003 1 -8.6 46
* 2003 2 -5.1 12
* 2003 3 -1.2 9
* 2003 4 2.4 31
* 2003 5 9.1 69
B 2003 6 13.2 47
FILE MEDITiä sovelletaan tässä sikäli erikoisella tavalla, että
- vaikka kyseessä on kuukausittainen aineisto - kaikki 12 kuukautta
jokaiselta vuodelta esitetään yhdellä sivulla.
Kuukausittaiset tiedot, keskilämpötila (Temp) ja sademäärä (Rain)
esitetään sekä taulukkona että profiilikuvina (punainen viiva)
kuukausittaisia keskiarvoja (musta viiva) vastaan.
Kultakin vuodelta annnetaan ehdollisina, sanallisina kommentteina
eräitä säätilaan liittyviä toteamuksia.
Aineistoa voi tässäkin tapauksessa selata esim. PgDn- ja PgUp-napein
vuodesta vuoteen.

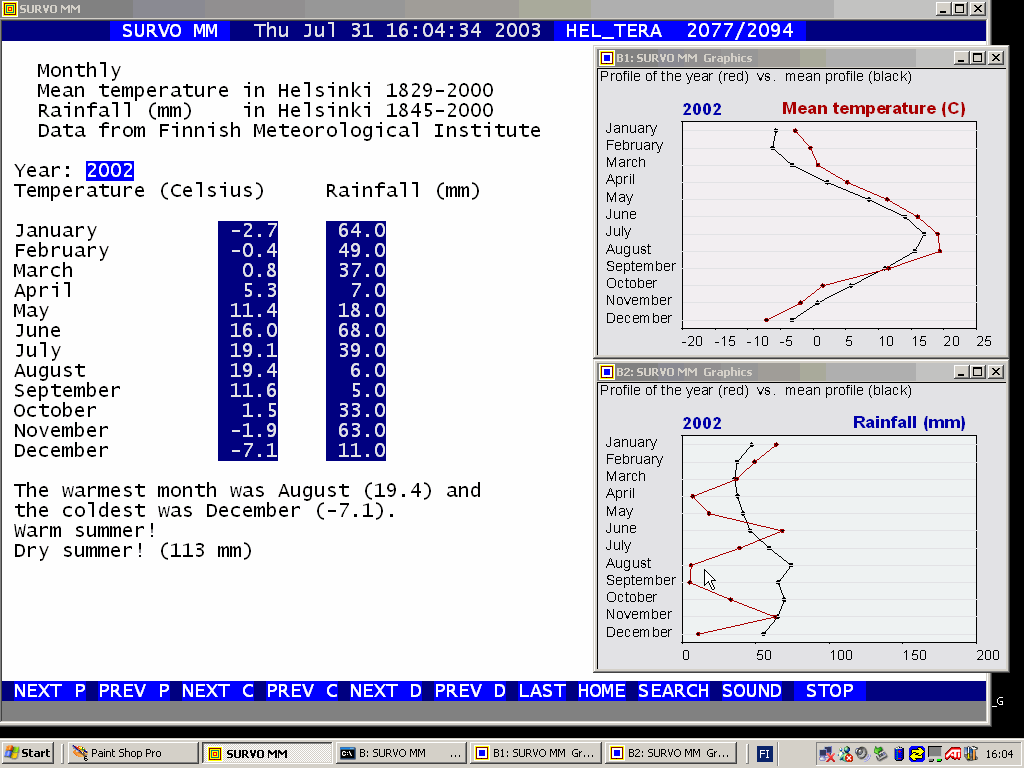

Seuraavassa tilanteessa on hakeuduttu vuoteen 2002 ja MILE MEDIT
esittää silloin tiedot näin:
FILE MEDIT on aktivoitu komennolla
FILE MEDIT HEL_TERA,HELTERA2:HELSINKIja sivusto HELSINKI (yksi ainoa tammikuun suhteen ehdollistettu sivu) toimituskentässä HELTERA2 on määritelty seuraavasti:
Näiden rivien selityksiä 11 *January=Month:1 / Definition of the condition 12 *MEDIT:HELSINKI SIZE=32,82 PAGES=Page1 13 * 14 *PAGE Page1: CONDITION:January SUCRO:MEDITS 15 * 16 * Monthly 17 * Mean temperature in Helsinki 1829-2000 18 * Rainfall (mm) in Helsinki 1845-2000 19 * Data from Finnish Meteorological Institute 20 * 21 * Year: #### 22 * Temperature (Celsius) Rainfall (mm) 23 : / 24 : / These comment lines will not be displayed. 25 : / In Year: #### above shadow PPPP protects the field during FILE MEDIT. 26 : / Characters with shadow '+' are hidden. 27 : / Characters with shadow '-' (as T01: etc. below) are deleted. 28 : / 29 * 30 * January T01: ###.# R01: ###.# 31 * February T02: ###.# R02: ###.# 32 * March T03: ###.# R03: ###.# 33 * April T04: ###.# R04: ###.# 34 * May T05: ###.# R05: ###.# 35 * June T06: ###.# R06: ###.# 36 * July T07: ###.# R07: ###.# 37 * August T08: ###.# R08: ###.# 38 * September T09: ###.# R09: ###.# 39 * October T10: ###.# R10: ###.# 40 * November T11: ###.# R11: ###.# 41 * December T12: ###.# R12: ###.# 42 * 43 * The warmest month was %1 (%2) and / %1=Mname1 %2=MaxTemp 44 * the coldest was %1 (%2). / %1=Mname2 %2=MinTemp 45 * %1 / %1=Summer1 46 * %1 (%2 mm) / %1=Summer2 %2=Rsum 47 * 48 *<START> data for sucro MEDITS 49 :TEST=0 / Set this to 1 if you have problems with the code below! 50 : Then you can break the sucro (of the 2nd Survo) by '.' 51 :REPLACE !,.,C / Transform !!!!!!!!!!'s to border lines. <ACT> 52 :REPLACE ?xx.x,-,C / Convert to missing values. <ACT> 53 :REPLACE ?zz,-,C / Convert to missing values. <ACT> 54 : / These are comment lines: 55 : / Lines to be activated by the sucro (MEDIT) must be denoted by <ACT>. 56 : / Page definitions must not contain any border lines. 57 : / Therefore the first REPLACE converts !'s to .'s . 58 : / Missing values for items indicated by xxx.x are represented 59 : / as ?xx.x . Therefore the second REPLACE is needed for conversion 60 : / to missing values (-). The same holds for the third REPLACE. 61 : / FILE MEDIT will modify the data table HELSINKI for each year in turn. 62 *DATA HELSINKI 63 *Month Temp Mtemp Rain Mrain I R 64 *January xxx.x -5.7 zzz 47.0 0 12 / x=Temp z=Rain % 65 *February xxx.x -6.2 zzz 37.2 0 11 / x=Temp[+1] z=Rain[+1] % 66 *March xxx.x -3.2 zzz 35.6 0 10 / x=Temp[+2] z=Rain[+2] % 67 *April xxx.x 2.2 zzz 37.6 0 9 / x=Temp[+3] z=Rain[+3] % 68 *May xxx.x 8.5 zzz 41.4 0 8 / x=Temp[+4] z=Rain[+4] % 69 *June xxx.x 14.1 zzz 46.1 0 7 / x=Temp[+5] z=Rain[+5] % 70 *July xxx.x 17.0 zzz 58.9 0 6 / x=Temp[+6] z=Rain[+6] % 71 *August xxx.x 15.6 zzz 74.1 0 5 / x=Temp[+7] z=Rain[+7] % 72 *September xxx.x 11.0 zzz 65.4 0 4 / x=Temp[+8] z=Rain[+8] % 73 *October xxx.x 5.8 zzz 69.4 0 3 / x=Temp[+9] z=Rain[+9] % 74 *November xxx.x 0.7 zzz 64.9 0 2 / x=Temp[+10] z=Rain[+10] % 75 *December xxx.x -3.2 zzz 55.3 0 1 / x=Temp[+11] z=Rain[+11] % 76 * 77 :GPLOT /FIX 1 <ACT> 78 :GPLOT HELSINKI / TYPE=HBAR VARS=Month(L),I(A) XLABEL= YLABEL= <ACT> 79 : SCALE=-20(5)25 LEGEND=- HEADER= OUTFILE=A PEN=[Swiss(40)] 80 : WHOME=0.58*WX,45 WSIZE=0.4*WX,0.38*WY MODE=960,700 81 : XDIV=200,690,70 YDIV=65,505,130 82 : FILL(-1)=0.1,0.12,0.1,0 FILL(-2)=0.05,0.06,0.05,0 83 : FRAMES=F1,F2 F1=0,0,960,700,-1 F2=200,65,690,505,-2 84 :!!!!!!!!!! 85 :GPLOT HELSINKI,Mtemp,R <ACT> 86 : XSCALE=-20(5)25 XLABEL= YLABEL= HEADER= PEN=[Swiss(40)] 87 : YSCALE=0.5:_,12.5:_ INFILE=A OUTFILE=A 88 : LINE=[line_width(2)],1 POINT=0,5 89 : WHOME=0.58*WX,45 WSIZE=0.4*WX,0.38*WY MODE=960,700 90 : XDIV=200,690,70 YDIV=65,505,130 91 :!!!!!!!!!! 92 :GPLOT HELSINKI,Temp,R <ACT> 93 : HEADER=Profile_of_the_year_(red)__vs.__mean_profile_(black) 94 : TEXTS=T1 T1=[Swissb(50)][RED],Mean_temperature_(C),435,575 95 * YLABEL=[Swissb(50)][BLUE],%1 / %1=Year 96 : XSCALE=-20(5)25 XLABEL= TOP=1 PEN=[Swiss(40)] 97 : YSCALE=0.5:_,12.5:_ INFILE=A 98 : LINE=[line_width(3)][RED],1 POINT=0,5 99 : WHOME=0.58*WX,45 WSIZE=0.4*WX,0.38*WY MODE=960,700 100 : XDIV=200,690,70 YDIV=65,505,130 101 : GRID=[line_color(-1)],1000,1 FILL(-1)=0.1,0.1,0.1,0 102 :!!!!!!!!!! 103 :GPLOT /FIX 2 <ACT> 104 :GPLOT HELSINKI / TYPE=HBAR VARS=Month(L),I(A) XLABEL= YLABEL= <ACT> 105 : SCALE=0(50)200 LEGEND=- HEADER= OUTFILE=B PEN=[Swiss(40)] 106 : WHOME=0.58*WX,45+0.41*WY WSIZE=0.4*WX,0.38*WY MODE=960,700 107 : XDIV=200,690,70 YDIV=65,505,130 108 : FILL(-1)=0.12,0.1,0.1,0 FILL(-2)=0.06,0.05,0.05,0 109 : FRAMES=F1,F2 F1=0,0,960,700,-1 F2=200,65,690,505,-2 110 :!!!!!!!!!! 111 :GPLOT HELSINKI,Mrain,R <ACT> 112 : XSCALE=0(50)200 XLABEL= YLABEL= HEADER= PEN=[Swiss(40)] 113 : YSCALE=0.5:_,12.5:_ INFILE=B OUTFILE=B 114 : LINE=[line_width(2)],1 POINT=0,5 115 : WHOME=0.58*WX,45+0.41*WY WSIZE=0.4*WX,0.38*WY MODE=960,700 116 : XDIV=200,690,70 YDIV=65,505,130 117 :!!!!!!!!!! 118 :GPLOT HELSINKI,Rain,R <ACT> 119 : HEADER=Profile_of_the_year_(red)__vs.__mean_profile_(black) 120 : TEXTS=T1 T1=[Swissb(50)][BLUE],Rainfall_(mm),600,575 121 * YLABEL=[Swissb(50)][BLUE],%1 / %1=Year 122 : XSCALE=0(50)200 XLABEL= TOP=1 123 : YSCALE=0.5:_,12.5:_ LINE=[RED],1 INFILE=B PEN=[Swiss(40)] 124 : LINE=[line_width[3][BLUE],1 POINT=0,5 125 : WHOME=0.58*WX,45+0.41*WY WSIZE=0.4*WX,0.38*WY MODE=960,700 126 : XDIV=200,690,70 YDIV=65,505,130 127 : GRID=[line_color(-1)],1000,1 FILL(-1)=0.1,0.1,0.1,0 128 *<END> data of sucro MEDITS 129 *END of Page1 130 * 131 *Definitions for various items needed on the page: 132 *T01=Temp[+0] T05=Temp[+4] T09=Temp[+8] 133 *T02=Temp[+1] T06=Temp[+5] T10=Temp[+9] 134 *T03=Temp[+2] T07=Temp[+6] T11=Temp[+10] 135 *T04=Temp[+3] T08=Temp[+7] T12=Temp[+11] 136 * 137 *R01=Rain[+0] R05=Rain[+4] R09=Rain[+8] 138 *R02=Rain[+1] R06=Rain[+5] R10=Rain[+9] 139 *R03=Rain[+2] R07=Rain[+6] R11=Rain[+10] 140 *R04=Rain[+3] R08=Rain[+7] R12=Rain[+11] 141 * 142 *Tmax=max(Temp[+5],Temp[+6],Temp[+7]) 143 *Tmaxn=maxn(Temp[+5],Temp[+6],Temp[+7]) 144 *U1=if(Tmax<16)then(1)else(U2) 145 *U2=if(Tmax<16.5)then(2)else(U3) 146 *U3=if(Tmax<19)then(3)else(U4) 147 *U4=if(Tmax<19.5)then(4)else(5) 148 * 149 *Summer1=$CLASS(Summer,U1) 150 *CLASSIFICATION Summer: 151 *1: Extremely cold summer! 152 *2: Summer was cold. 153 *3: Normal summer temperature. 154 *4: Warm summer! 155 *5: Summer was hot. 156 *END 157 * 158 *Rsum=Rain[+5]+Rain[+6]+Rain[+7] 159 *V1=if(Rsum<80)then(1)else(V2) 160 *V2=if(Rsum<140)then(2)else(V3) 161 *V3=if(Rsum<220)then(3)else(V4) 162 *V4=if(Rsum<300)then(4)else(V5) 163 *V5=if(Rsum<1000)then(5)else(0) 164 * 165 *Summer2=$CLASS(Rainfall,V1) 166 *CLASSIFICATION Rainfall: 167 *0: Rainfall not measured! 168 *1: Extremely dry summer! 169 *2: Dry summer! 170 *3: Normal rainfall in summer! 171 *4: Wet summer! 172 *5: Extremely rainy summer! 173 *END 174 * 175 *Tmaxn2=maxn(Temp[+4],Temp[+5],Temp[+6],Temp[+7],Temp[+8]) 176 *MaxTempn=Tmaxn2+4 MaxTemp=round(Temp[MaxTempn-1],1) 177 *Mname1=$CLASS(Months,MaxTempn) 178 *Tminn2=minn(Temp,Temp[+1],Temp[+2],Temp[+9],Temp[+10],Temp[+11]) 179 *MinTempn=if(Tminn2<4)then(Tminn2)else(Tminn2+6) 180 * MinTemp=round(Temp[MinTempn-1],1) 181 *Mname2=$CLASS(Months,MinTempn) 182 * 183 *CLASSIFICATION Months: 184 *1: January 185 *2: February 186 *3: March 187 *4: April 188 *5: May 189 *6: June 190 *7: July 191 *8: August 192 *9: September 193 *10: October 194 *11: November 195 *12: December 196 *END
11 *January=Month:1 / Definition of the condition 12 *MEDIT:HELSINKI SIZE=32,82 PAGES=Page1 13 * 14 *PAGE Page1: CONDITION:January SUCRO:MEDITSmääritellään havainnon näyttämistä koskeva ehto (11) ja itse sivusto (12). Ainoa sivu (Page1) alkaa riviltä 14 ja se on ehdollinen siten, että kuukausiaineistosta näytetään vain Tammikuu-havainnot (CONDITION:January).
