Bivariate normal distribution

S.Mustonen (1990)

Edit field:

   1 *SAVE BINORM / Plotting a sample from a bivariate normal distribution
   2 *LOAD INDEX
   3 *Working with simulated data:
   4 *
   5 *FILE CREATE BINORM,8,2
   6 *FIELDS:
   7 *1 N 4 X
   8 *2 N 4 Y
   9 *END
  10 *Initialize the data file for 1000 observations:
  11 *FILE INIT BINORM,1000
  12 *
  13 *VAR X,Y TO BINORM / compute values of variables
  14 *X=probit(rnd(0))   Seed number of rnd(0) is time-dependent.
  15 *Y=X+probit(rnd(0))
  16 *.......................................................................
  17 *

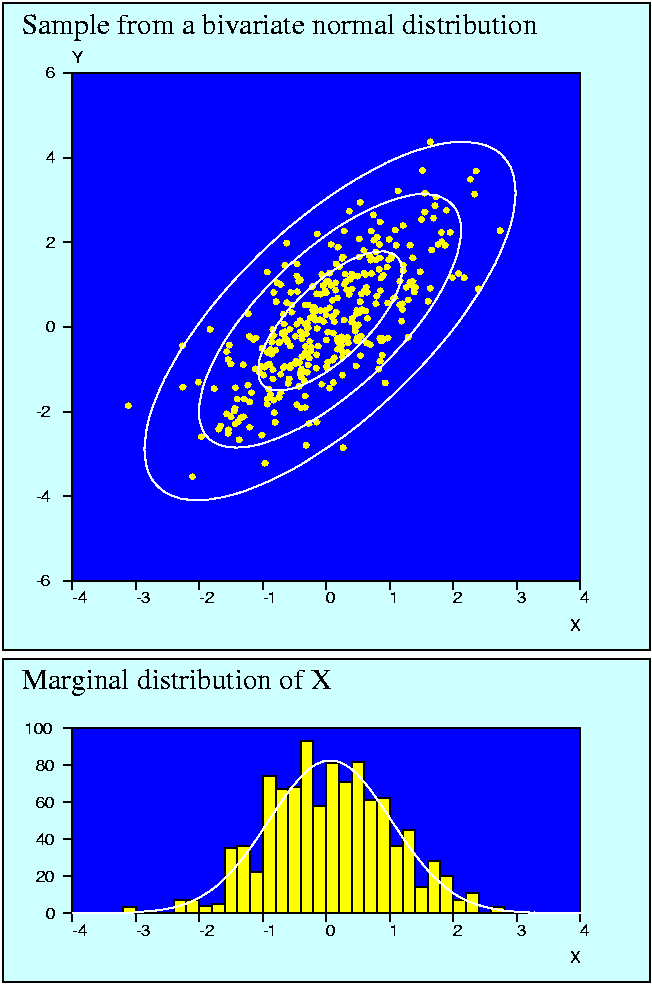

  18 *PLOT BINORM,X,Y
  19 *HEADER=[Times(18)],Sample_from_a_bivariate_normal_distribution
  20 *PEN=[Swiss(10)][BLACK]  LINETYPE=[line_width(1)][BLACK]
  21 *XSCALE=-4(1)4 YSCALE=-6(2)6
  22 *CONTOUR=[color(0,0,0,0)][line_width(1)],0.5,0.9,0.99
  23 *SIZE=1700,1700 XDIV=150,1400,150 YDIV=150,1400,150
  24 *POINT=[YELLOW],0
  25 *FRAMES=F1,F2
  26 *F1=0,0,1700,1700,-1
  27 *[FILL-1]=0.2,0,0,0
  28 *F2=150,150,1400,1400,-2
  29 *[FILL-2]=1,1,0,0
  30 *HOME=200,500
  31 *DEVICE=PS,BINORM.PS
  32 *.......................................................................
  33 *Assessing normality of X by plotting a histogram:
  34 *HEADER=[Times(18)],Marginal_distribution_of_X
  35 *PEN=[Swiss(10)][BLACK]  LINETYPE=[line_width(1)][BLACK]
  36 *HISTO BINORM,X
  37 *X=-4(0.2)4 XSCALE=-4(1)4 FIT=[WHITE][line_width(1)],Normal
  38 *HOME=200,500   YSCALE=0(20)100
  39 *DEVICE=PS,BINORM2.PS
  40 *FILL=-3 [FILL-3]=0,0,1,0
  41 *SIZE=1700,700  XDIV=150,1400,150 YDIV=150,400,150
  42 *FRAMES=F1,F2
  43 *F1=0,0,1700,700,-1
  44 *[FILL-1]=0.2,0,0,0
  45 *F2=150,150,1400,400,-2
  46 *[FILL-2]=1,1,0,0
  47 *.......................................................................
  48 *
  49 *PRINT CUR+1,E
  50 - [left_margin(10)][line_spacing(12)][copies(1)]
  51 & 42
  52 - picture BINORM.PS,*,*
  53 & 17
  54 - picture BINORM2.PS,*,*
  55 E
  56 *
  57 *
