Time series diagram

S.Mustonen, Survo Users' Guide (1992), p. 324
Time series diagram

Edit field:

   1 *

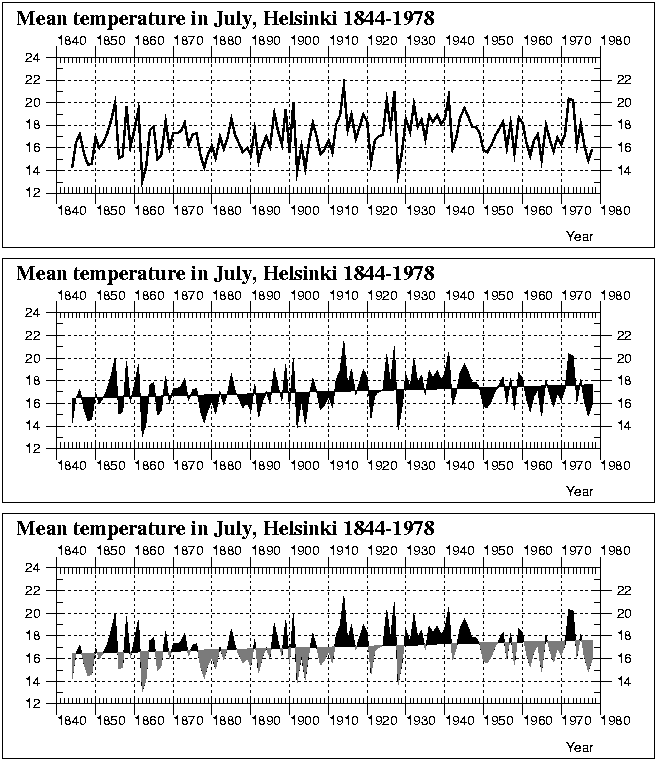

   2 *PLOT HELSINKI,TIME(Year),Temp
   3 *HEADER=[Times(11)],Mean_temperature_in_July,_Helsinki_1844-1978
   4 *LINE=[line_width(1)],1  PEN=[Swiss(7)]  DEVICE=PS,HELS1.PS   *GLOBAL*
   5 *SIZE=1160,450 XDIV=100,960,100 YDIV=100,250,100 YLABEL=
   6 *XSCALE=-3:1840,7(10)127,137:1980  XSCALE2=XSCALE        TICK=1,1
   7 *YSCALE=12(2)24  YSCALE2=14(2)22 GRID=[line_type(2)],XY TICK2=1,1
   8 *........................................................................
   9 *LINREG HELSINKI / VARS=Temp(Y),Year(X),Trend(P)
  10 *PLOT HELSINKI,TIME(Year),Temp
  11 *FILL=1,1,135,Trend  LINE=[line_width(0.24)],1  DEVICE=PS,HELS2.PS
  12 *........................................................................
  13 *PLOT HELSINKI,TIME(Year),Temp / FILL-=[line_color(0.5)],1
  14 *FILL=[line_color(0)],1,1,135,Trend  LINE=[line_width(0.24)],1
  15 *DEVICE=PS,HELS3.PS
  16 *........................................................................
  17 *
  18 *PRINT CUR+1,END
  19 % 600
  20 - picture HELS1.PS
  21 % 460
  22 - picture HELS2.PS
  23 % 460
  24 - picture HELS3.PS
  25 *
